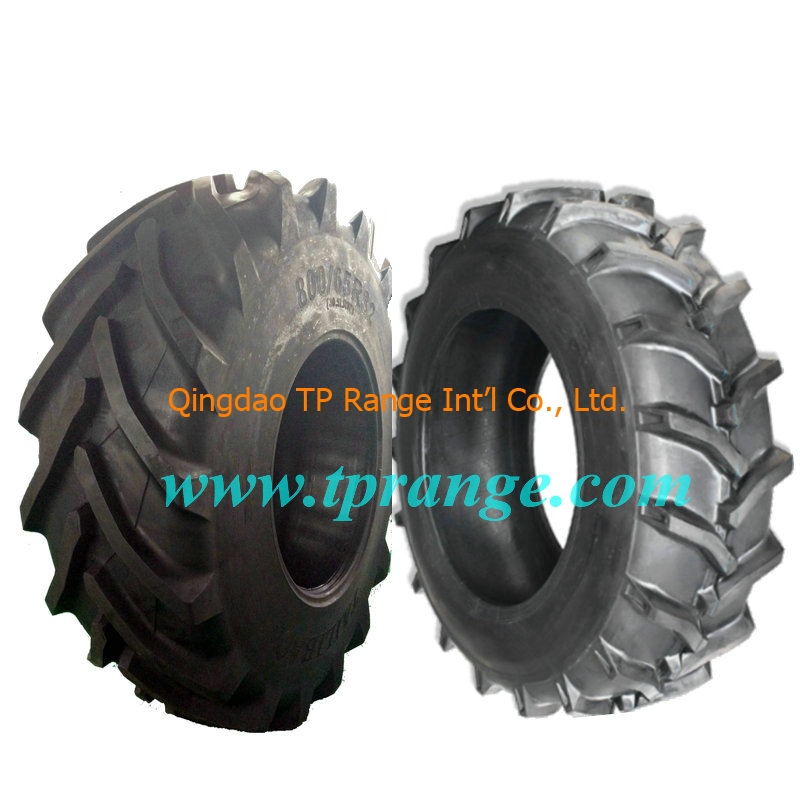

Radial AGR Tyre

Time：2016-12-27 16:45 Author:admin Click:

轮胎规格	有无内胎	负荷指数	测量轮	新胎空载尺寸		静负荷	滚动周长	最大负荷	充气压力	速度
Tire Size	TT/TL	速度标志	辋宽度	Unloaded Dimension		半径	Rolling	Load	Inflation	Speed
		Load Index	Measured			Static	Circumference	Capaciy	Pressure
		Speed Symbol	Rim Width	外直径	断面宽	Loaded	mm	kg	kpa	km/h
			in	Outer Diameter	Section Width	Radius
				mm	mm	mm
320/85R28	TL	124A8/121B	11	1258	321	575	3776	1600	160	40
(12.4R28)
340/85R28	TL	127A8/124B	12	1308	353	598	3921	1750	160	40
(13.6R28)
380/85R28	TL	133A8/130B	13	178	389	627	4124	2060	160	40
(14.9R28)
420/85R28	TL	139A8/136B	15	1438	452	637	4298	2430	160	40
(16.9R28)
380/85R30	TL	135A8/132B	13	1407	388	639	4218	2180	160	40
(14.9R30)
420/85R30	TL	140A8/137B	15	1483	458	674	4440	2500	160	40
(16.9R30)
460/85R30	TL	140A8/137B	16	1527	488	680	4566	2900	160	40
(18.4R30)
420/85R34	TL	142A8/139B	15	1594	439	710	4784	2650	160	40
(16.9R34)
460/85R34	TL	147A8/144B	16	1649	491	743	4944	3075	160	40
(18.4R34)
420/85R38	TL	144A8/141B	15	1667	448	752	5014	2800	160	40
(16.9R38)
460/85R38	TL	149A8/146B	16	1737	482	776	5207	3250	160	40
(18.4R38)
520/85R38	TL	155A8/152B	18	1863	546	841	5589	3875	160	40
(20.8R38)
460/85R42	TL	150A8/147B	16	1865	493	844	5611	3350	160	40
(18.4R42)
520/85R42	TL	157A8/154B	18	1969	560	887	5917	4125	160	40
(20.8R42)
520/85R46	TL	158A8/155B	18	262	560	921	6205	4250	160	40
(20.8R46)
420/90R30	TL	142A8/139B	13	1496	434	679	4478	2650	160	40
(16.9R30)
440/65R24	TL	128A8/125B	14	1190	437	530	3556	1800	160	40
480/65R24	TL	133A8/130B	15	1224	469	541	3653	2060	160	40
540/65R24	TL	140A8/137B	16	1316	526	585	3918	2500	160	40
750/65R26	TL	158A8/155B	25	1600	761	710	4761	4250	160	40
(28LR26)
440/65R28	TL	131A8/128B	14	1288	439	579	3862	1950	160	40
480/65R28	TL	136A8/133B	15	1336	466	593	4002	2240	160	40
540/65R28	TL	142A8/139B	16	1424	528	631	4257	2650	160	40
540/65R30	TL	143A8/140B	16	1477	521	653	4422	2725	160	40
800/65R32	TL	172A8/169B	25	1833	797	820	5460	6300	240	40
(30.5LR32)
540/65R34	TL	145A8/142B	16	1581	539	716	4746	2900	160	40
600/65R34	TL	151A8/148B	18	1665	607	750	4922	3450	160	40
540/65R38	TL	147A8/144B	16	1682	539	759	5058	3075	160	40
600/65R38	TL	153A8/150B	18	1768	604	796	5311	3650	160	40
650/65R38	TL	157A8/154B	20	1812	653	815	5439	4125	160	40
650/65R42	TL	158A8/155B	20	1921	651	865	5775	4250	160	40
380/70R24	TL	125A8/122B	12	1198	384	533	3574	1650	160	40
420/70R24	TL	130A8/127B	13	1231	426	563	3675	1900	160	40
380/70R28	TL	127A8/124B	12	1304	382	589	3903	1750	160	40
420/70R28	TL	133A8/130B	13	1350	414	597	4044	2060	160	40
480/70R28	TL	140A8/137B	15	1431	477	643	4279	2500	160	40
480/70R30	TL	141A8/138B	15	1463	480	653	4382	2575	160	40
480/70R34	TL	143A8/140B	15	1571	487	720	4717	2725	160	40
520/70R34	TL	148A8/145B	16	1639	530	739	4916	3150	160	40
520/70R38	TL	150A8/147B	16	1743	529	787	5238	3350	160	40
580/70R38	TL	155A8/153B	18	1852	580	811	5465	3875	160	40
710/70R38	TL	166A8/163B	23	1950	741	863	5837	5300	160	40
620/70R42	TL	160A8/157B	20	1917	626	841	5762	4500	160	40
710/70R42	TL	173A8/170B	23	2079	743	937	6234	6500	240	40
460/80R38	TL	149A8/146B	16	1737	482	776	5207	3250	160	40
(18.4R38)
480/80R42	TL	150A8/147B	16	1865	493	844	5611	3350	160	40
(18.4R42)
480/80R46	TL	158A8/158B	16	1971	490	905	5936	4250	240	40
(18.4R46)
