  English > Products > Tire products > Radial Truck Tire / TBR >

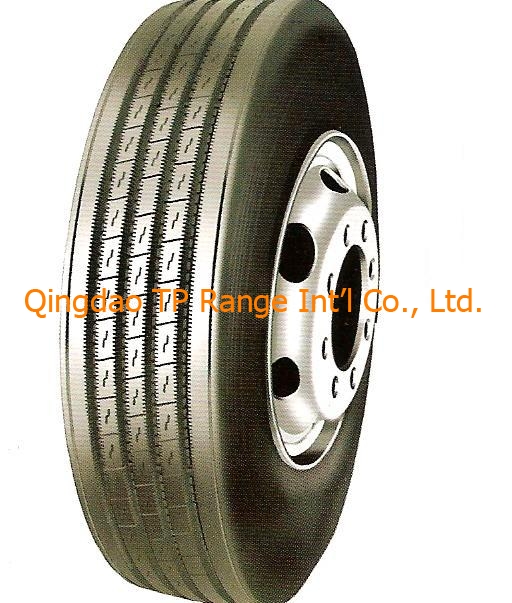

TR566
Time:2016-04-24 22:08  Author:admin Click:

Size  ply rating  Tread depth    standard rim  bear  pressure  load index  speed grade  inflated tyre diameter
  kg  lbs  kpa  psi     D+/-1.2%overall diameter  B+/-3.5% section width
weight kgs  single  double  single  double  single  double  single  double  single  double
285/75R24.5 14 14.5   8.25 2800 2575 6175 5675 760 760 110 110 144 141 M 1050 283
285/75R24.5 16 14.5   8.25 3075 2800 6780 6175 830 830 120 120 147 144 M 1050 283
295/75R22.5  14 14.5 48.2 9.00 2800 2575 6175 5675 760 690 110 110 144 141 L 1014 298
295/75R22.5  16 14.5   9.00 3000 2575 6610 6005 830 830 120 120 146 143 M 1014 298
295/80R22.5 18 14.5   9.00 3550 3150 7830 6940 830 830 120 120 149 146 M 1044 298
11R22.5 14 14.5   8.25 2800 2625 6175 5840 720 720 105 105 144 149 L 1054 279
11R22.5 16 14.5   8.25 3000 2725 6610 6005 830 830 120 120 146 144 M 1054 279
11R24.5 14 14.5   8.25 3000 2725 6610 6005 720 720 105 105 146 146 M 1104 279
11R24.5 16 14.5   11.75 3250 3000 7160 6610 830 830 120 120 149 146 M 1104 279
385/65R22.5 20 15     4500 _ 9920 _ 900 _ 130   160 _ K 1072 389
