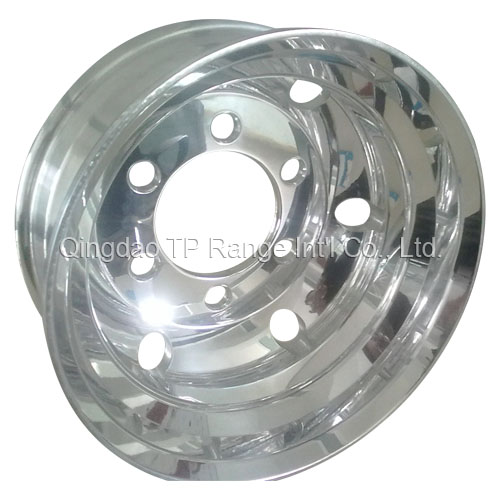

Forged wheel 8.25x24.5
Time:2011-04-20 13:10  Author:admin Click:




SIZE  CB Inset Outset  Stud Diameter  PCD Weight (KGS) MAX LOAD (LBS)
24.5x8.25 281.2 145 168 32.5 335*10 29.36 7900
24.5x8.25 220 145 168 26.75 285.75*10 29.6
24.5x8.25 221 145 168 32.5R22 285.75*10 27.78
22.5x8.25 220 144.5 167.5 26.75 285.75*10 22 7400
22.5x8.25 221 144.5 167.5 32.5R22 285.75*10 22
22.5x8.25 281.2 144.5 167.5 32 335*10 22
22.5x7.5 281.2 138 160 26.75 335*10 22 7850
22.5x11.75 281.2 0 22 26 335*10  25 9915
22.5x11.75 281.2 0 22 26.75 335*10  25 9915
22.5x11.75 281.2 120 146 26 335*10  25 9915
22.5x11.75 281.2 120 146 26.75 335*10  25 9915
22.5x9.00 281.2 152 177 26.75 335*10  24 9090
22.5x9.00 281.2 152 177 32.5 335*10  24 9090
17.5x6.75 202 120 141 26.75 245x6 13.88 2500KGS
19.5x7.5 202 120 141 26.75 245*6  13.88 2500KGS
