English > Products > Wheel products > Forged wheel >

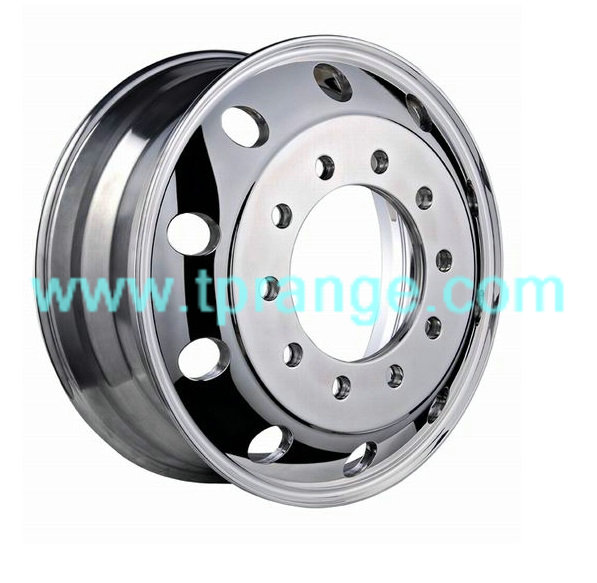

Forged wheel 11.75x22.5

Time：2011-04-20 13:42 Author:admin Click:

SIZE	CB	Inset	Outset	Stud Diameter	PCD	Weight (KGS)	MAX LOAD (LBS)
24.5x8.25	281.2	145	168	32.5	*33510**	29.36	7900
24.5x8.25	220	145	168	26.75	*285.7510**	29.6
24.5x8.25	221	145	168	32.5R22	*285.7510**	27.78
22.5x8.25	220	144.5	167.5	26.75	*285.7510**	22	7400
22.5x8.25	221	144.5	167.5	32.5R22	*285.7510**	22
22.5x8.25	281.2	144.5	167.5	32	*33510**	22
22.5x7.5	281.2	138	160	26.75	*33510**	22	7850
22.5x11.75	281.2	0	22	26	*33510**	25	9915
22.5x11.75	281.2	0	22	26.75	*33510**	25	9915
22.5x11.75	281.2	120	146	26	*33510**	25	9915
22.5x11.75	281.2	120	146	26.75	*33510**	25	9915
22.5x9.00	281.2	152	177	26.75	*33510**	24	9090
22.5x9.00	281.2	152	177	32.5	*33510**	24	9090
17.5x6.75	202	120	141	26.75	245x6	13.88	2500KGS
19.5x7.5	202	120	141	26.75	*2456**	13.88	2500KGS
