  English > Products > Wheel products > Forged Aluminum wheel >

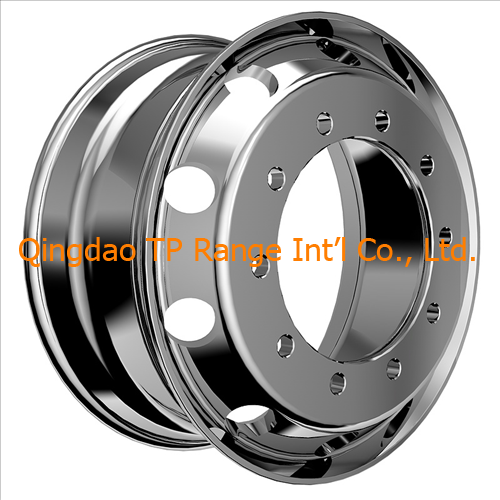

22.5*9.00
Time:2016-12-26 14:08  Author:admin Click:



SIZE Part No. Inset(mm)  outset(mm) PCD HOLES P.C.D  (mm) Stud (mm)  C.B (mm) MAX LOAD MAX LOAD WEIGHT (kg)
22.5*9.0 T047813532A 152.5 177.5 10 335 32.5 281.1 3650KG   8040LBS 26.4
22.5*9.0 T057813526B 79 106 10 335 26 281.1 4676KG   10300LBS 23.61
22.5*9.0 T060813526A 152.5 17.5 10 335 26.75 281.1 4125KG 9090LBS 25.73
22.5*9.0 T061813526A 152.2 176.2 10 335 26.75 281.1 4125KG   9090LBS 26.20
22.5*9.0 T068692221B 81 105 6 222.25 21 169 4125KG 9090LBS
22.5*9.0 T074813526B 154.5 175.5 10 335 26 281.1 3650KG 8040LBS 23.90
