  English > Products > Wheel products > Forged Aluminum wheel >

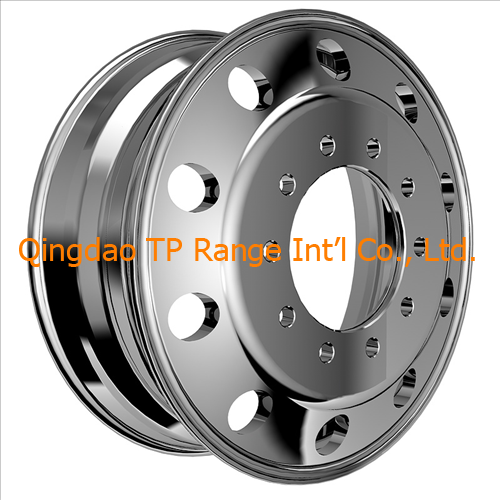

24.5*8.25
Time:2016-12-26 14:17  Author:admin Click:



SIZE Part No. Inset(mm)  outset(mm) PCD HOLES P.C.D  (mm) Stud (mm)  C.B (mm) MAX LOAD MAX LOAD WEIGHT (kg)
24.5*8.25 T008813532A 144 168 10 335 32.5 281.1 3550KG 7800LBS 27.78
24.5*8.25 T031218532B 144 168 10 285.75 32.5R22 221.1 3650KG 8000LBS  28.39
24.5*8.25 T049218532B 144 168 10 285.75 32.5R22 221.1 3995KG 8800LBS 29.36
24.5*8.25 T052813532A 144 168 10 335 32.5 281.1 3550KG 7800LBS 27.78
24.5*8.25 T053813532A 144 168 10 335 32.5 281.1 3550KG 7800LBS 27.78
24.5*8.25 T075208526B 144 168 10 285.75 26 220.1 3550KG 7800LBS 27.50
