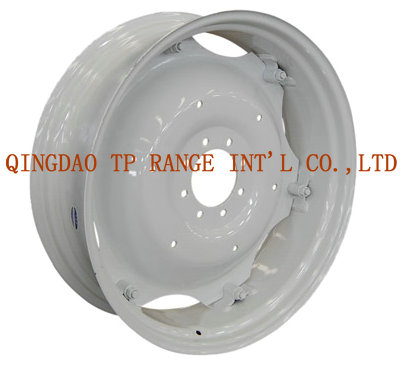

Tractor Wheel W10x32

Time：2011-04-20 18:18 Author:admin Click:

Size	Offset	C.B.D	P.C.D	No. of Holes & Dia	DISC THICKNESS(mm)	Equipped with tyre
W10×24	81	Φ290.5	Φ330	6-Φ15	8	11.2-24
W13×28	20	Φ152.4	Φ203.2	8-Φ20	10	14.9-28
W10×32	35	Φ152.4	Φ203.2	8-Φ20	10	11.2-32
W12×30	20	Φ152.4	Φ203.2	8-Φ21	10	13.6-30
W12×30	50	Φ199	Φ250	8-Φ20	10	14.9-30
W12×24	26	Φ152.6	Φ203.2	8-Φ19	8	13.6-24
W12×24	70	Φ221	Φ275	8-Φ21.5	8	13.6-24
W15×34	31	Φ152.4	Φ203.2	8-Φ21	12	16.9-34
W16 ×30	12	Φ152.4	Φ203.2	8-Φ21	12	18.4-30
W7×20	54.5	Φ250.5	Φ285	6-Φ17	6	8.30-20
W7×20	50	Φ102	Φ161	6-Φ17	6	8.30-20
W7×24	54.5	Φ250	Φ285	6-Φ17	8	8.30-24
W7×24	28	Φ141	Φ180	6-Φ17	8	8.30-24
WD14×24	0	Φ502	Φ535	12-Φ17	0	15.0-24
15.3×9.00	-6	Φ158	Φ205	5-Φ17	5	10.00-15.3
5.50F×20	30	Φ141	Φ180	6-Φ19	8	6.50-20
5.50F×20	30	Φ141	Φ180	6-Φ15	8	6.50-20
W12×24	26	Φ152.6	Φ203.2	8-Φ19	8	13.6-24
W12×24	70	Φ221	Φ275	8-Φ21.5	8	13.6-24
W7×20	54.5	Φ250.5	Φ285	6-Φ17	6	8.30-20
W7×20	50	Φ102	Φ161	6-Φ17	6	8.30-20
